What types of waterproof solar carport brackets are available?

Under the backdrop of carbon neutrality, the photovoltaic + carport (i.e., solar carport) model is rapidly developing due to its advantages in combining clean energy production with integrated land use. Many solar carport systems currently on the market integrate waterproofing, practicality, and aesthetics, supporting various photovoltaic carport structures such as single-wing, double-wing, Type IV, and Type II. They utilize weather-resistant materials such as hot-dip galvanized steel or zinc-aluminum-magnesium alloys to adapt to different environments.

1. Multiple Waterproofing Mechanisms:

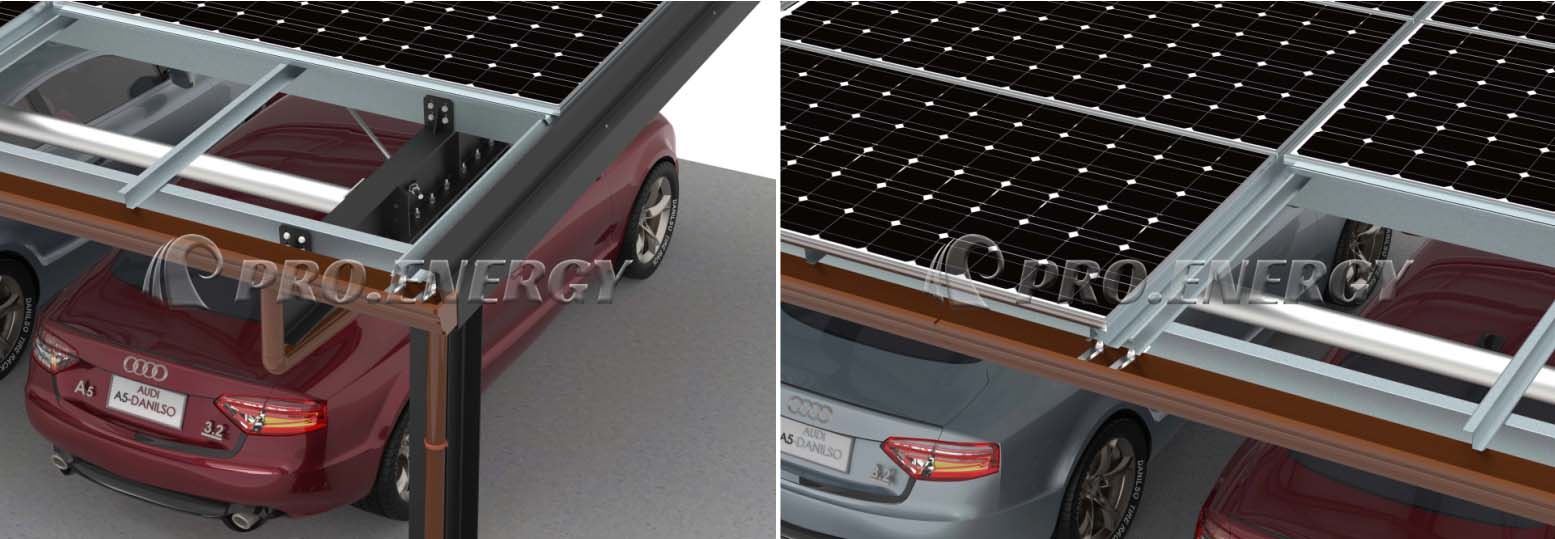

A typical photovoltaic carport waterproofing design uses a combined structure of "M-shaped main water channel + secondary water channel + waterproof cover + gutter + drainage pipe." Rainwater is collected in the drainage channel and discharged systematically through the gutter, ensuring a dry interior.

Integrated Design: The solar photovoltaic modules are integrated with the structure, and the gaps are sealed to form a continuous waterproof layer.

Structural Drainage: The fully enclosed system prevents water accumulation and reduces the risk of leakage.

Structural Waterproofing: Wind-resistant and earthquake-resistant design ensures long-term waterproofing.

Convenient Maintenance: A pre-installed inspection channel facilitates future maintenance.

2. Architectural Aesthetics and Installation Ease:

The photovoltaic carport system emphasizes edge finishing, with meticulous processing resulting in a clean, durable, and modern appearance. Solar photovoltaic modules can be customized in color and size to coordinate with different architectural styles and blend into the surrounding landscape, achieving a unity of function and aesthetics.

3. Diverse Structural Types:

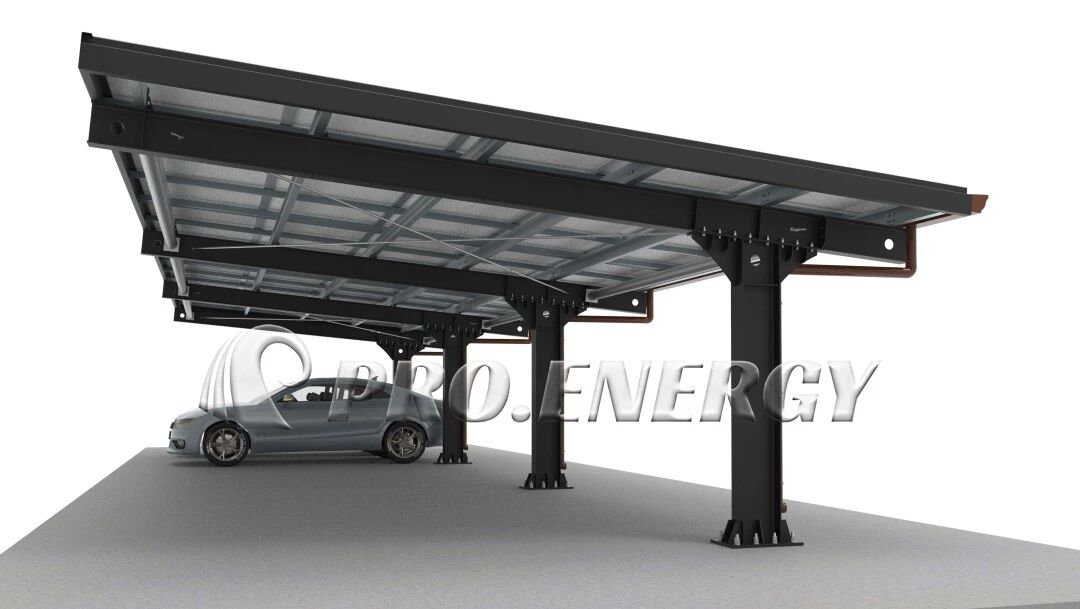

Single-Column Single-Wing Photovoltaic Carport: Supported by a single column, it occupies a small area, suitable for small parking lots, family backyards, communities, and temporary event spaces.

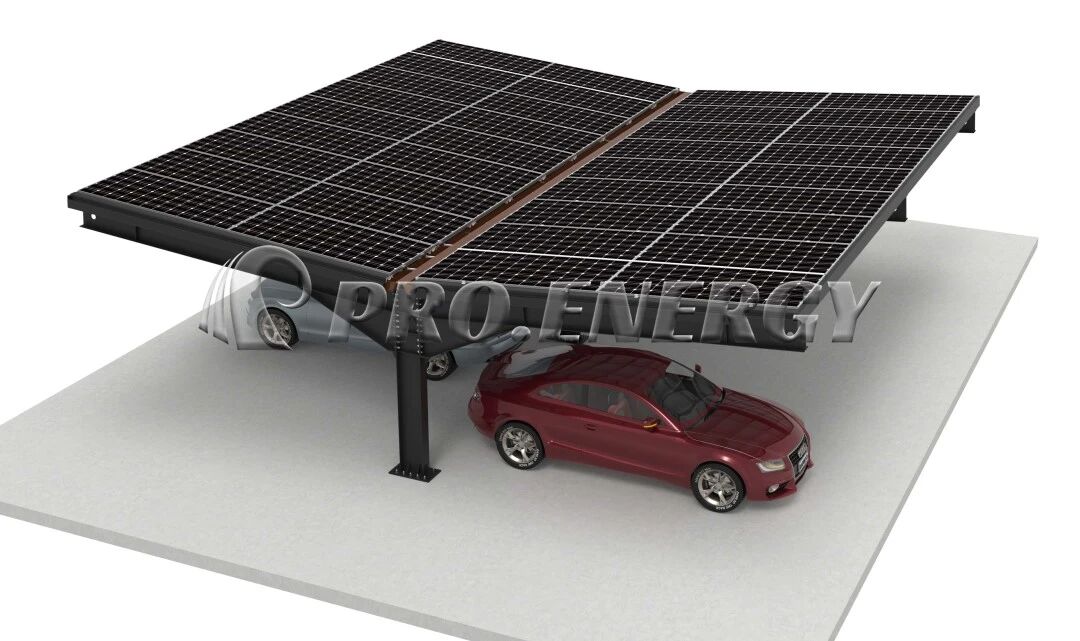

Single-Column Double-Wing Solar Carport: With both wings spread, it provides a larger coverage area, disperses stress, and offers excellent wind resistance, suitable for sites with limited space and windy areas. It can be combined and expanded.

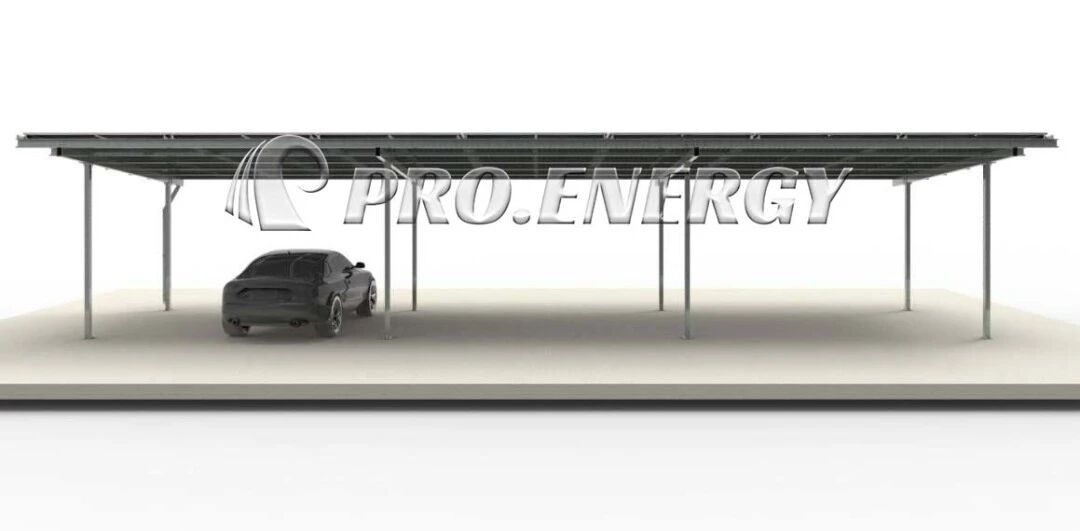

Type IV (Multi-Column) Photovoltaic Carport: Multiple columns distribute stress points, resulting in a stable structure, wind and earthquake resistance, and a wide coverage area, suitable for large parking lots and industrial parks.

Type II (Double-Column) Photovoltaic Carport: Combining the simplicity of a single column with the stability of a multi-column structure, it has a grand appearance, adjustable dimensions, and is suitable for medium-sized parking lots and commercial complexes.

Waterproof solar carports offer a practical solution for integrating green energy with urban infrastructure, thanks to their diverse structural designs, reliable waterproofing, and excellent aesthetic adaptability.
