Metal roof Rails mounting system

Short Description:

PRO.FENCE developed metal roof rails mount system is suitable for roofing with corrugated metal. The structure is made out of aluminum alloy material for light weight and assembled with clamps for no damages on roof.


Product Detail

Product Tags

FEATURES

-No penetrating roof

Rails rooftop mount system is using clamps to install rails won’t penetrate rooftop.

-Quick and safe installation

All clamps is customized according the roof section is easily install on the roof without sliding.

-Long service life

High performance of corrosion resistance of material Al 6005-T5, SUS304 comes long service life.

-Wide application

Various types of roof clamp supplied to fit different sections of rooftop metal sheet.

- Module installed without restriction

Maximize the layout of modules without restriction by the roof section.

- MOQ

Small MOQ is acceptable



Specification

Install Site

Corrugated metal sheet roof

Roof slope

Up to 45°

Wind speed

Up to 46m/s

Material

Al 6005-T5,SUS304

Module Array

Landscape / Portrait

Standard

JIS C8955 2017

Warranty

10 years

Practical life

20years

rooftop mount rail
侧压
roof solar mid clamp
Roof clamp

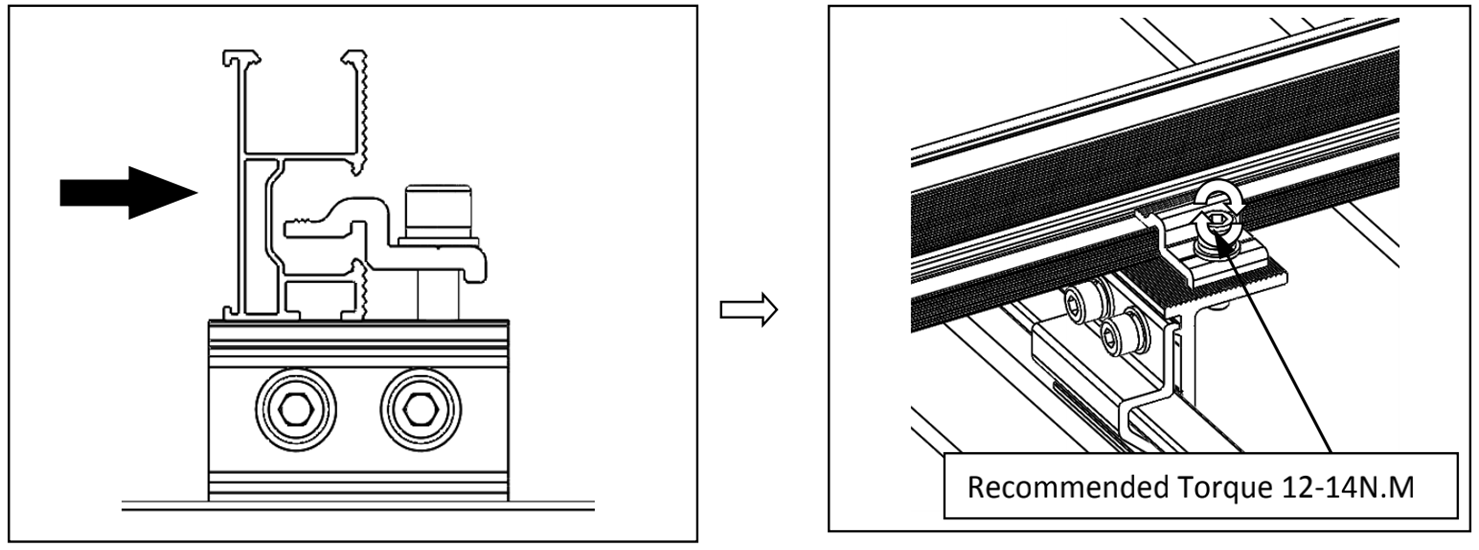

Rail                                                  Side clamp                               Mid clamp                                     Roof clamp

Reference

roof solar mount system
rooftop solar mount
