Hot dipped galvanized Steel carport solar mounting system

Short Description:

Carport solar mounting system is fit solution for solar power generation while convenient parking spaces. The solar modules instead of traditional roof to bring possibility on energy production, then as shield for your cars from sunshine and raining. It also can be charging station for electric vehicle, scooters and so on. PRO. supplied steel carport solar mounting system is for strong structure and optimized cost saving.

Product Detail

Product Tags

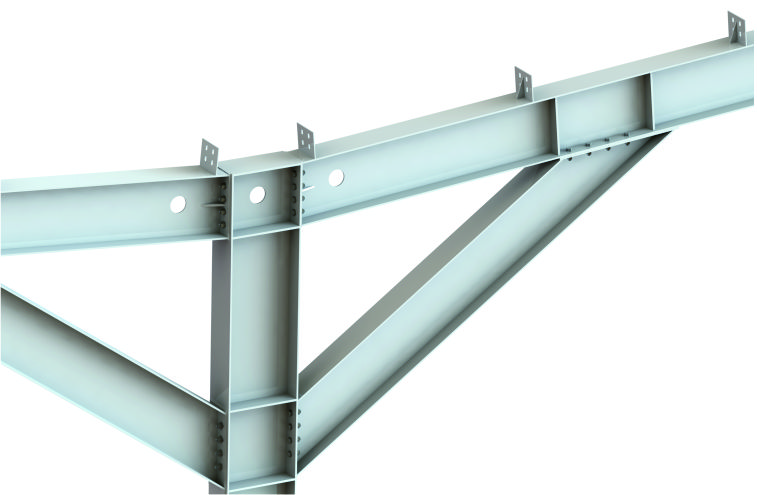

PRO. fabricated steel carport solar mounting system is processed of carbon steel finished in hot dipped galvanized. It adopts carbon steel purchased from famous TANGSTEEL for stable quality with yield strength up to 355. As well as advanced galvanizing process could make steel coated zinc up to 80μm. This single column carport solar mounting structure designed by professional engineer with years line experience for optimized parking spaces. It can be also designed by both of waterproof and non-waterproof mounting system.



-Maximum utility on space while generating green electricity

-Stronger steel structure for high stability and safety

-Single post design to maximize parking space

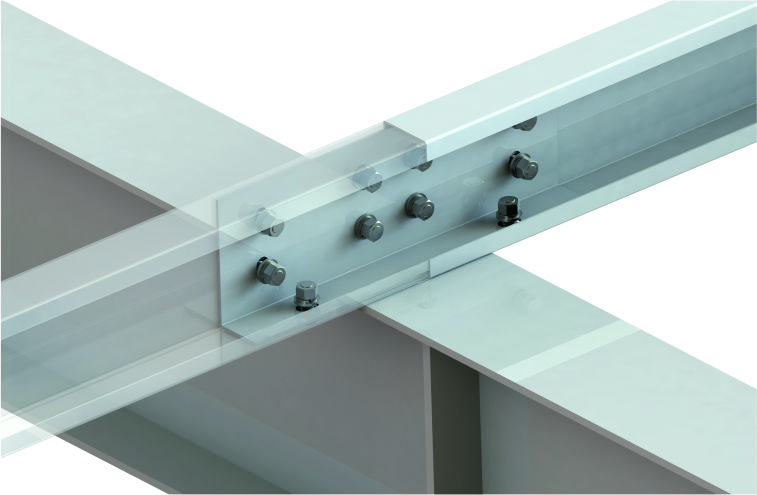

-Beam and post can be spliced on site to avoid large machinery

-Customized color coating acceptable as per environments

-Good performance on water proof to prevent vehicles from raining



Application: Carport Tilt angle:0-10°
Material : Hot Dip Galvanized Steel Wind speed: Up to 42m/s
Module Array : Any layout up to site condition Snow load:  0.7kn/m2
Foundation : Concrete base Practical life:20years
Standard: AS/NZS1170,JIS C89552017;GB50009-2012 Quality Warranty:10 years




2 Single colum carport solar mounting system
