I-Shaped Waterproof Solar Carport Mounting Structure

I-Shaped Waterproof Solar Carport Mounting Structure

Product Description

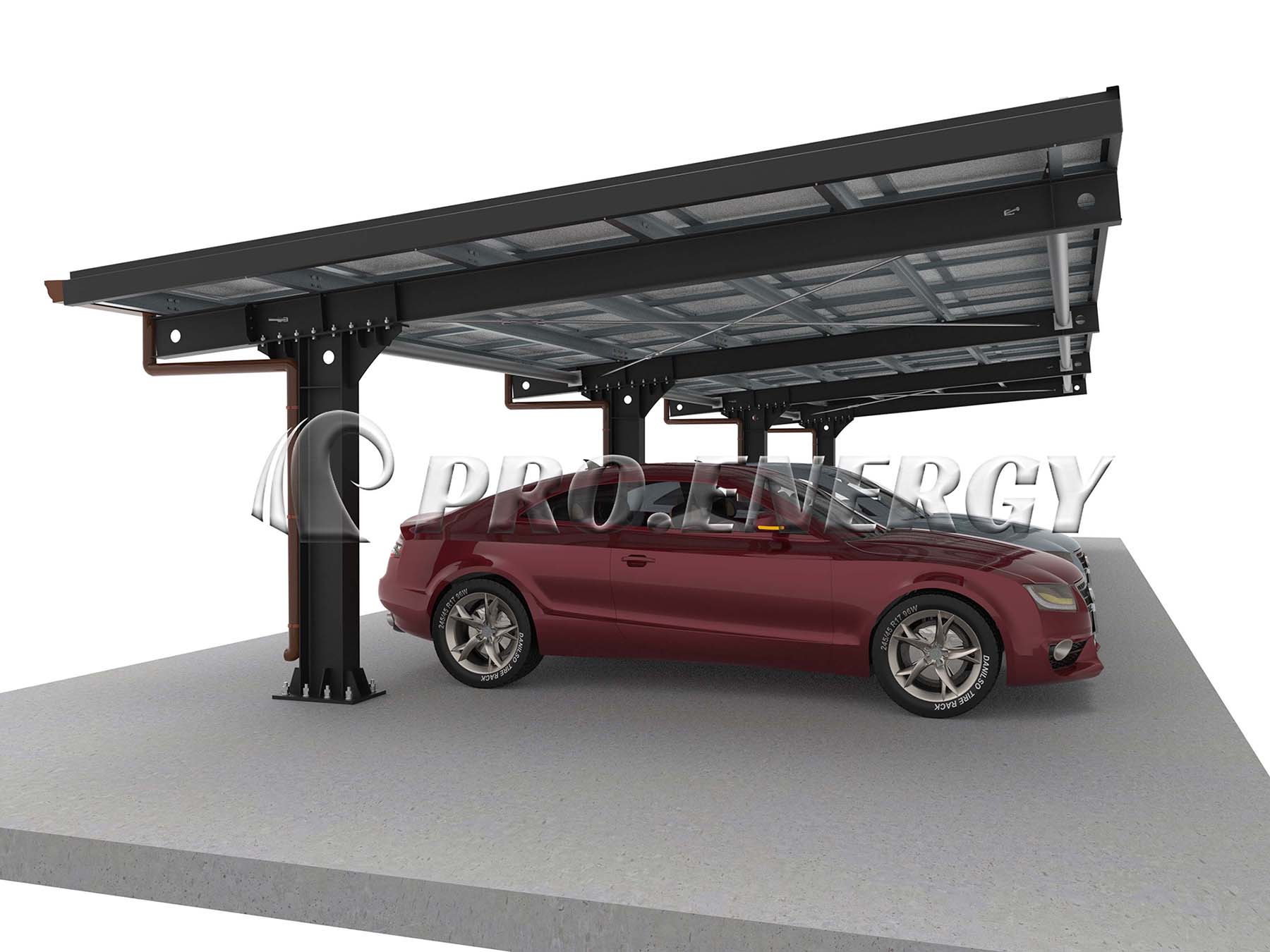

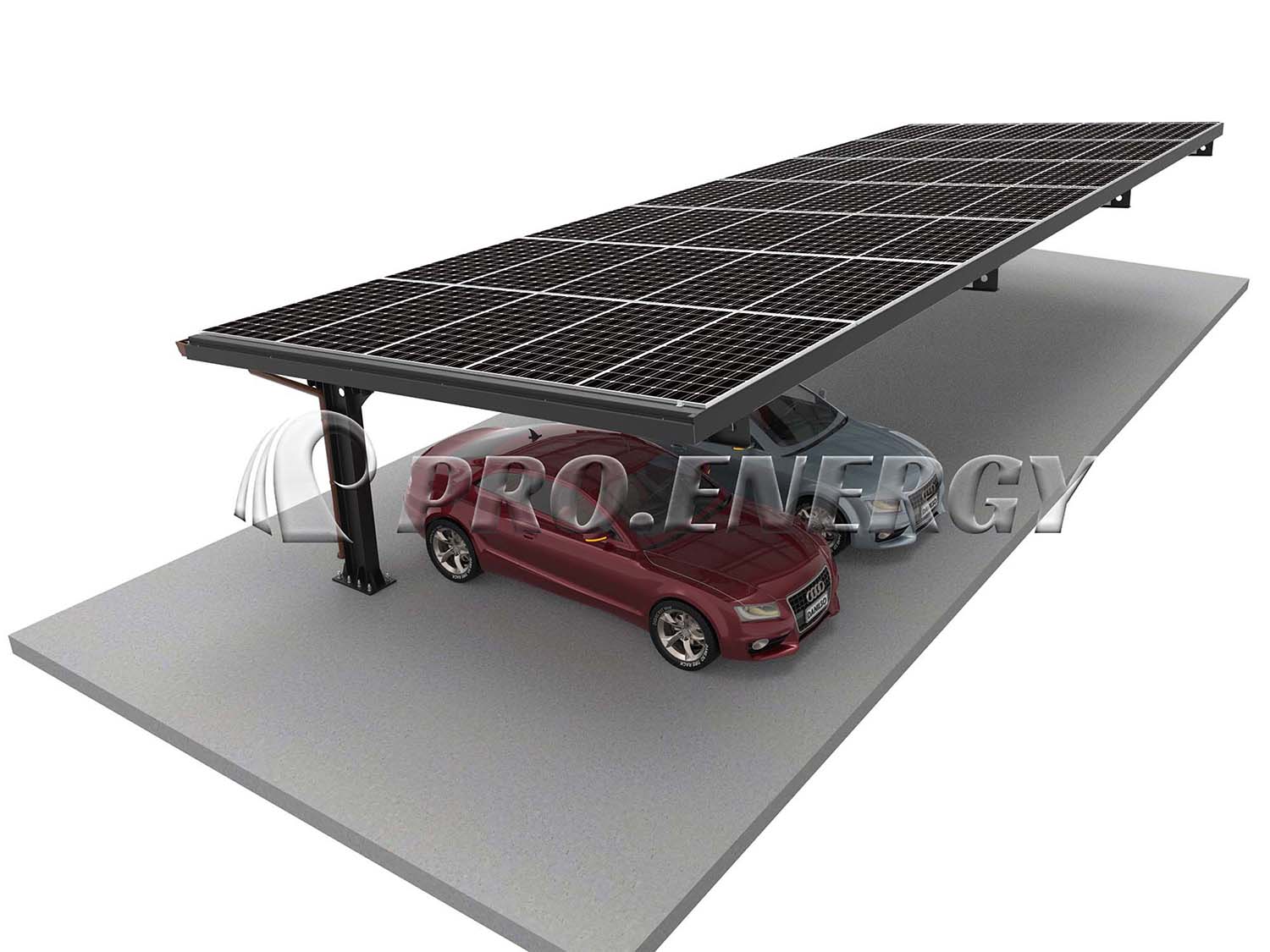

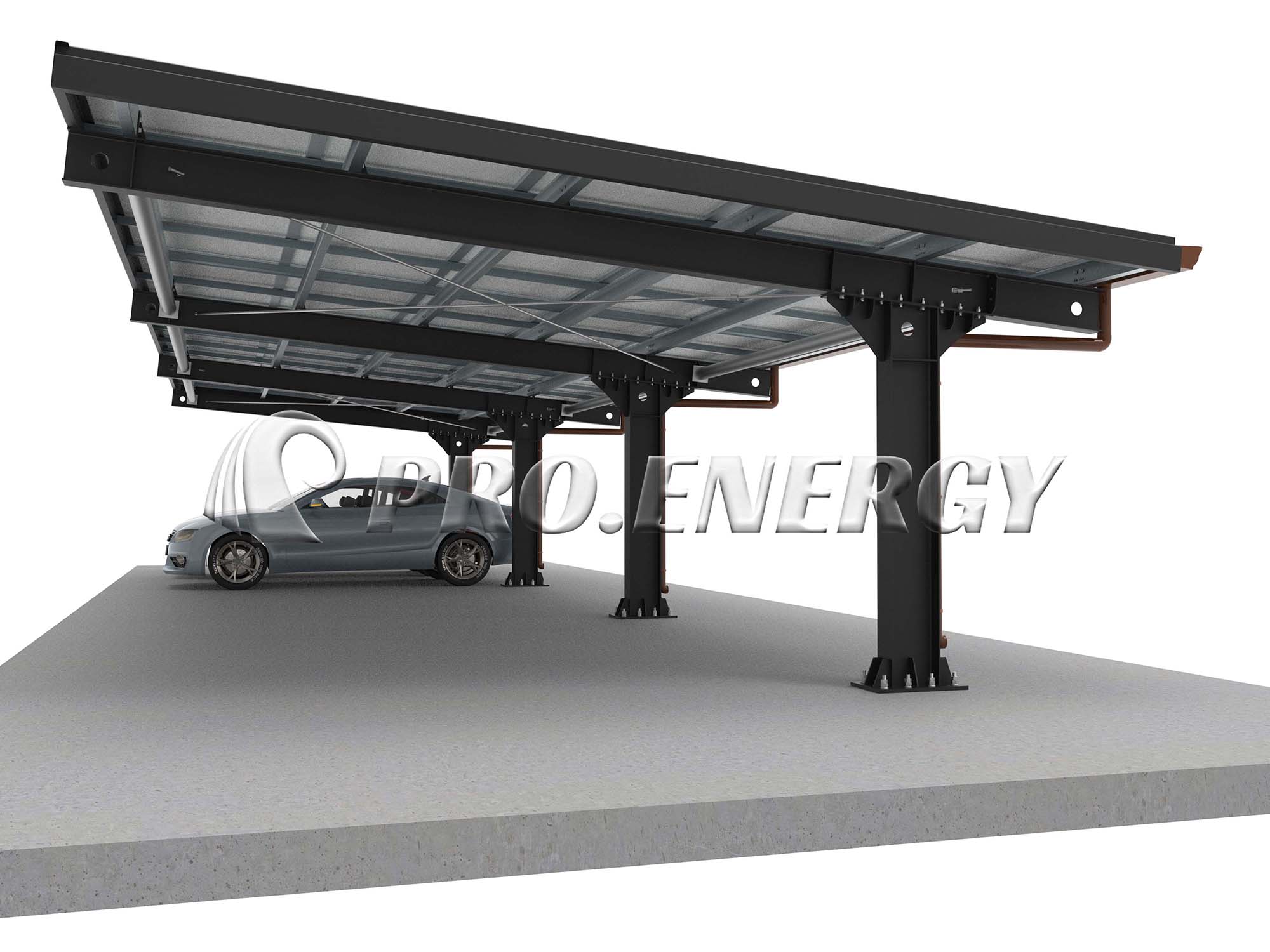

Designed for the booming European commercial and residential EV charging infrastructure, this TÜV certified I-shaped solar carport mounting system is fully compliant with Eurocode 1 and DIN EN 1991-1-4 wind load standards. Engineered with high-strength Aluminium 6005-T6 and SUS304 stainless steel components, it delivers superior corrosion resistance and structural stability for long-term outdoor use across Germany, the Netherlands, Spain and other European mainstream markets. The pre-assembled I-shaped frame features a tool-less click-in installation mechanism, reducing on-site labour time by 40% and perfectly addressing the pain point of high labour costs in Europe. This all-in-one system serves as both a durable parking shade and a high-efficiency solar power generator, with an integrated drainage gutter that eliminates the need for additional waterproofing, ensuring maximum ROI for solar projects of all scales.

Features & Benefits

• Certification & Compliance ：TÜV certified & Eurocode 1 compliant, with full static calculation report provided, wind load resistance up to 0.6 kN/㎡, meets all local building permit requirements in Europe.
• Material Properties and Design Life ：High-strength Aluminium 6005-T6 & SUS304 stainless steel, 25-year product warranty, 40-year structural lifespan, excellent corrosion resistance for European diverse climates.
• Installation Performance ：Pre-assembled I-shaped frame, tool-less click-in mechanism, no on-site cutting or drilling required, 40% reduction in installation time.
• Structural Benefits ：Integrated drainage gutter system, no additional waterproofing needed; lightweight design with high load-bearing capacity, reduces foundation construction.
• System Compatibility ：Universal rail system, compatible with all major PV module brands (Longi, Jinko, Trina, etc.) and bifacial modules, suitable for commercial/residential EV charging carports.
• Logistics Benefits：30 days FOB Tianjin lead time, regular consolidation shipments to Antwerp, Valencia and Hamburg ports.

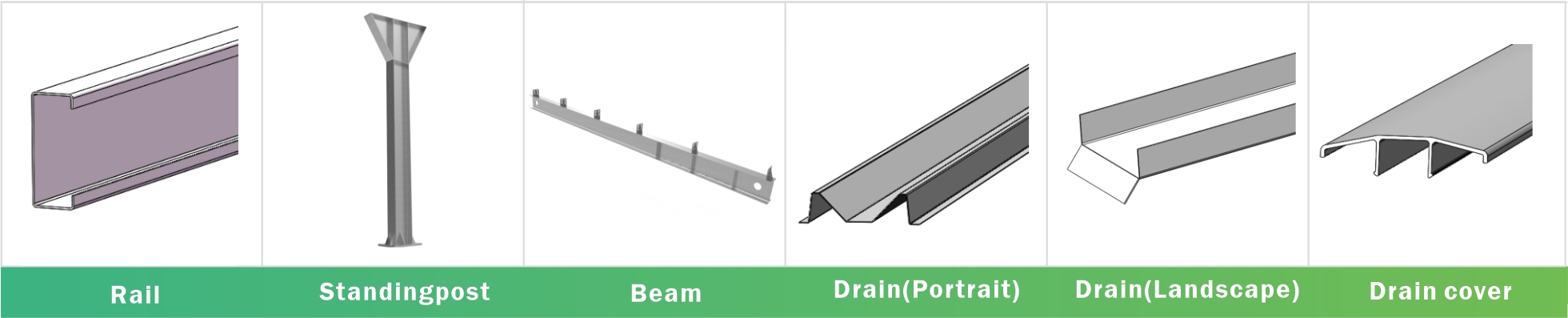

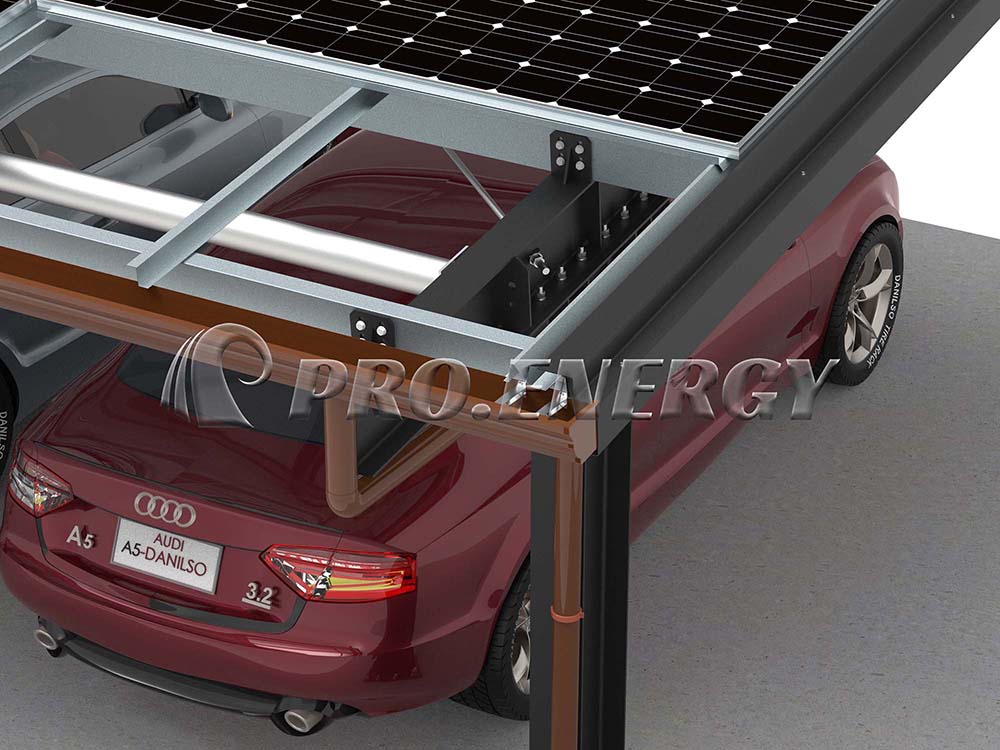

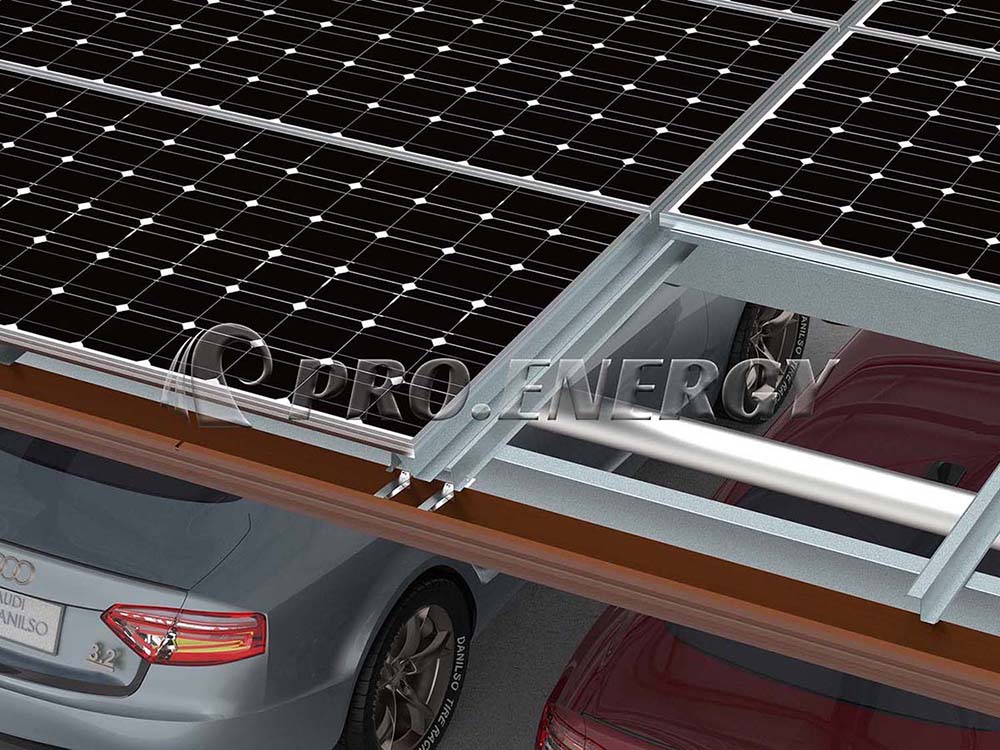

Detail Show

Project Reference

FAQ

Q: How many types of carport solar PV mount structures we supply?

      A: Single wing and double wings, single and double post carport solar mounting. All shapes structures could be offered.

Q: What materials you design for PV mounting structure?

      A: Hot-dip galvanizing, Zn-Al-Mg, Aluminum Alloy. Steel ground mounting system has price advantage.

Q: What’s advantage compare with other supplier?

      A: Small MOQ acceptable, Raw material advantage, Japanese and European industrial standards, professional engineering team.

Q: What info are required for a quotation?

      A: Module data, layout, height, angle, condition at site.

Q: Do you have a quality control system?

      A: Yes, strictly as per ISO9001, has awarded certificates of CE and JQA, full inspection before shipment.

Q: Can I have samples before my order? What’s the minimum order quantity?

      A: Free mini sample. MOQ Depends on products, please feel free to contact us for any inquires.
